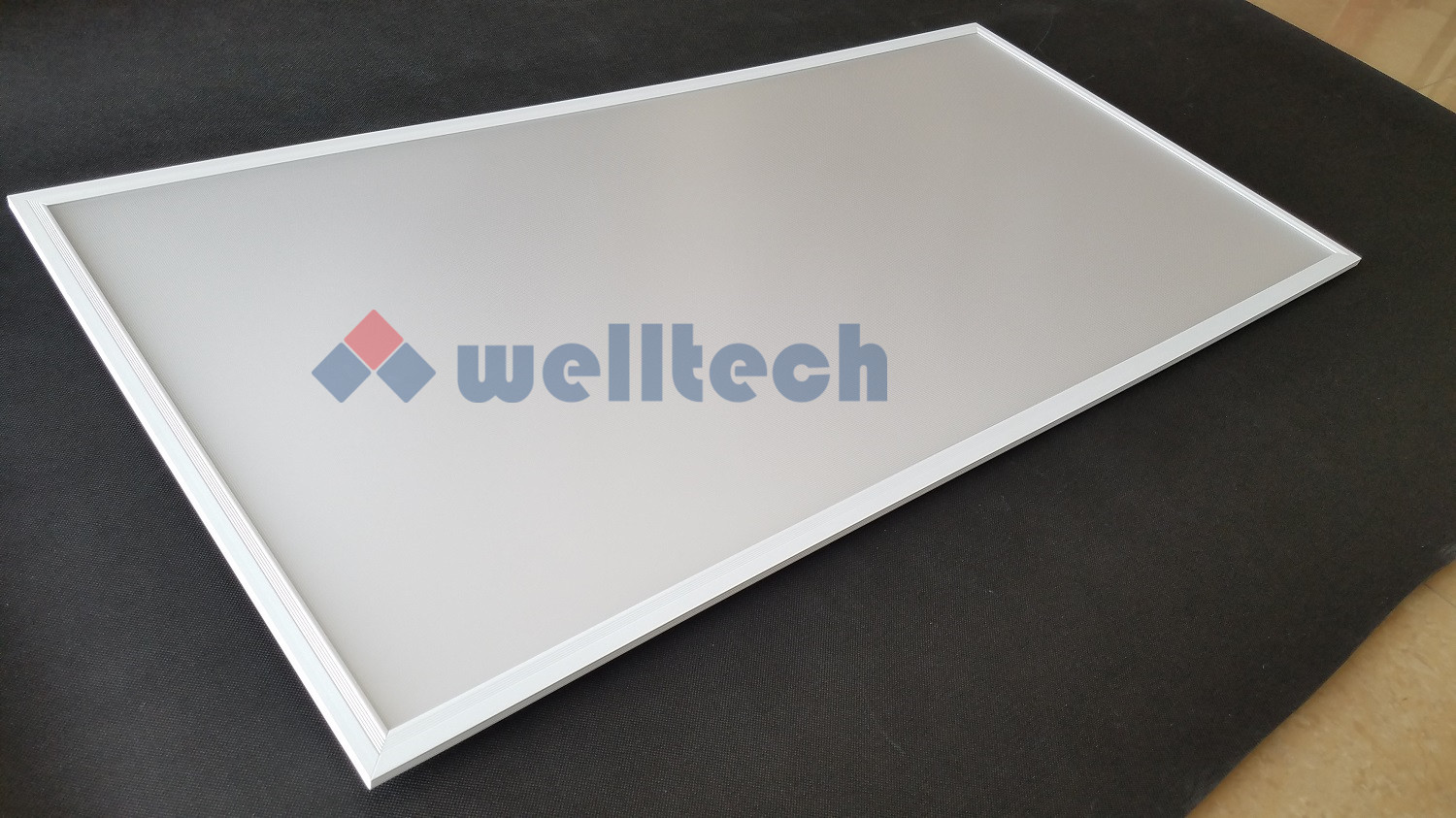

1200x600mm (edge lit)

微信

复制链接

脸书

领英

Input AC200-240V/50-60Hz or AC85-265V /50-60Hz

Chip SMD2835

Lumen efficency 100lm/W, 120lm/W

CRI >80 ( can offer CRI>90 if wanted)

PF >0.95

Flicker No

Consulting Now

SpecificationAccessoryPacking

Features:

1) Super bright LED light source, high light efficiency >120lm/W, energy saving more than 80% and eco-friendly, smoothly light for our eyes;

2) Aluminum alloy frame with anti-static thermoplastic coating, corrosion resisting and antioxidant;

3) With ENEC, TUV, CE approved driver, PF> 0.95, flicker free;

4) Mitsubishi acrylic(PMMA) light guide plate, never turn yellow;

5) Special circuit layout and good heat dissipation, lifespan more than 50000 hours;

6) Beautiful appearance, elegant, lightweight, untra-thin;

7) Easy installations: Recessed , Mounted, Suspension, Imbedded installation are available.

Main Specification:

Product	LED panel light
Input	AC200-240V/50-60Hz or AC85-265V /50-60Hz
Chip	Epistar SMD4014 or SMD2835
Lumen efficency	100lm/W, 120lm/W
CRI	>80 ( can offer CRI>90 if required)
PF	>0.95
THD	17
Beam angle	160°
Driver	Choose branded driver: Meanwell, Philips, LIFUD, AGT, BOKE, etc (ENEC, TUV,CE approved)
Dimmable	Triac,1-10V,DALI, DMX512 can choose
Working temp.	-40°C - 50°C
IP grade	IP40
Energy efficency class	A++
CCT	3000K, 4000K, 5000K, 6000K (customized CCT available, precise to ±100K)
Frame colour	White, Silver, Black, etc
Certificates	EMC (EN61547, EN55015, EN61000), LVD (EN60598), EN62471, RoHS
Lifespan	50000 hours
Warranty	3 years, 5 years can choose

Item Specification:


Installation

-Recessed installation (no need accessory)

-Suspended installation (with hanging string)

-Mounted installation (with mounted frame)

-Embedded installation (with spring clips)

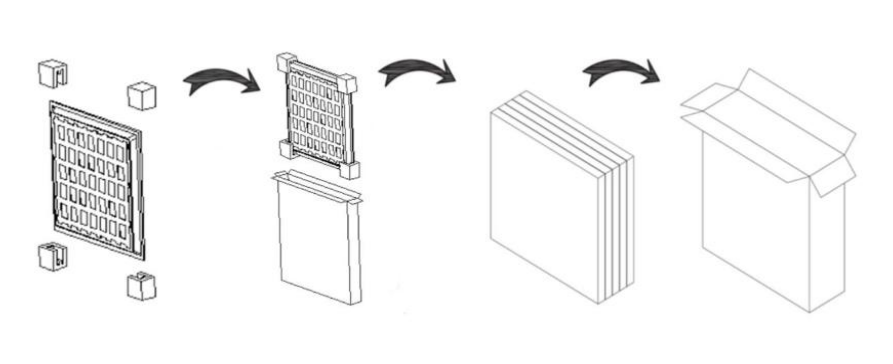

Packing data

LED panel	Qty/ctn (pcs)	Carton size(cm)	G.W per box (KGS)	20 GP container qty(pcs)	40 GP container qty(pcs)	40 HP container qty(pcs)
300x300mm	10	34x34x34	8	7000	14000	17400
600x600mm	10	64x64x34	16	2000	4000	4800
620x620mm	10	74x74x34	17	1800	3600	4700
1200x300mm	8	123x34x34	17	1900	3800	4780
1200x600mm	3	123x63x23	12.5	450	900	1150
