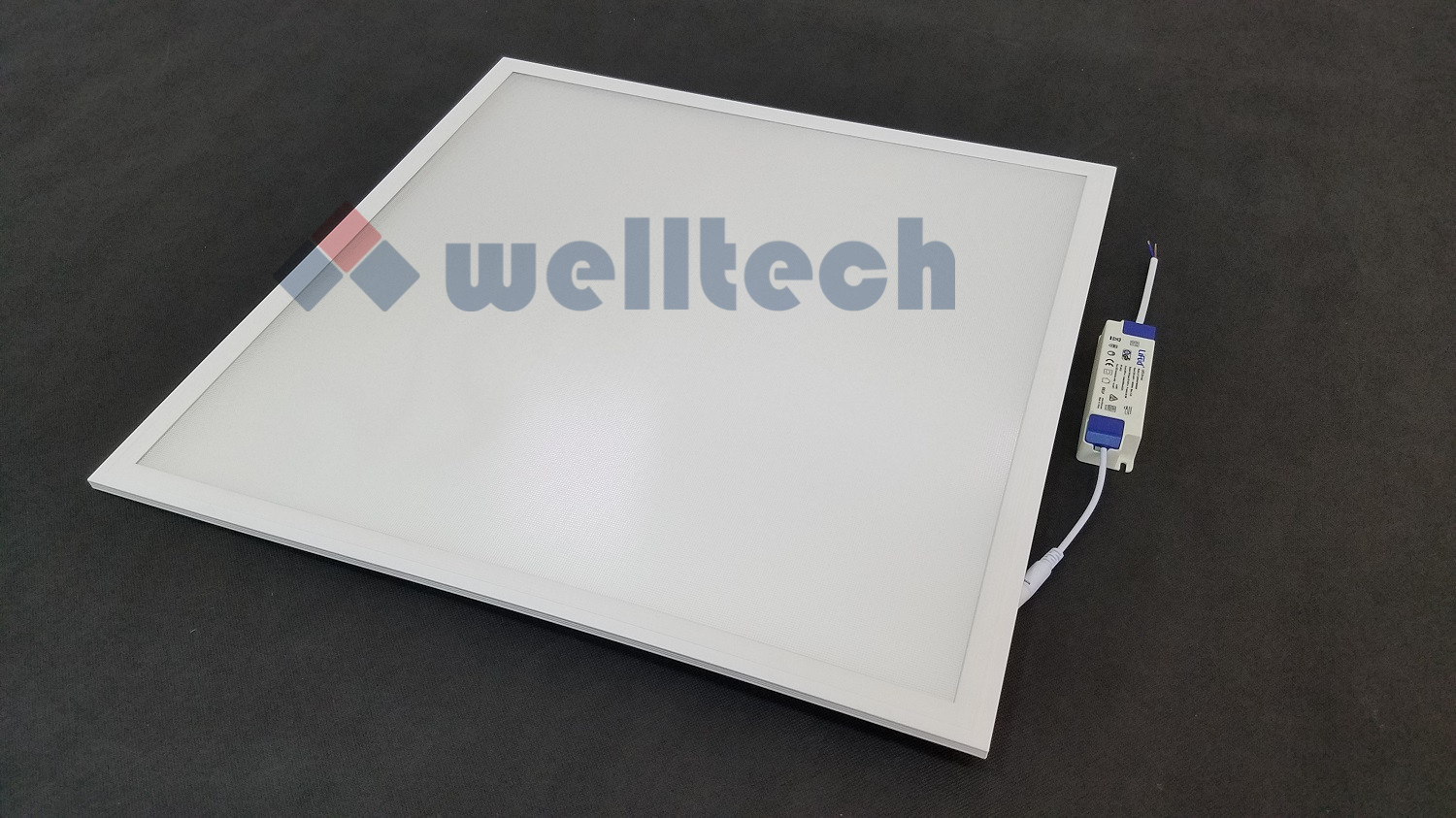

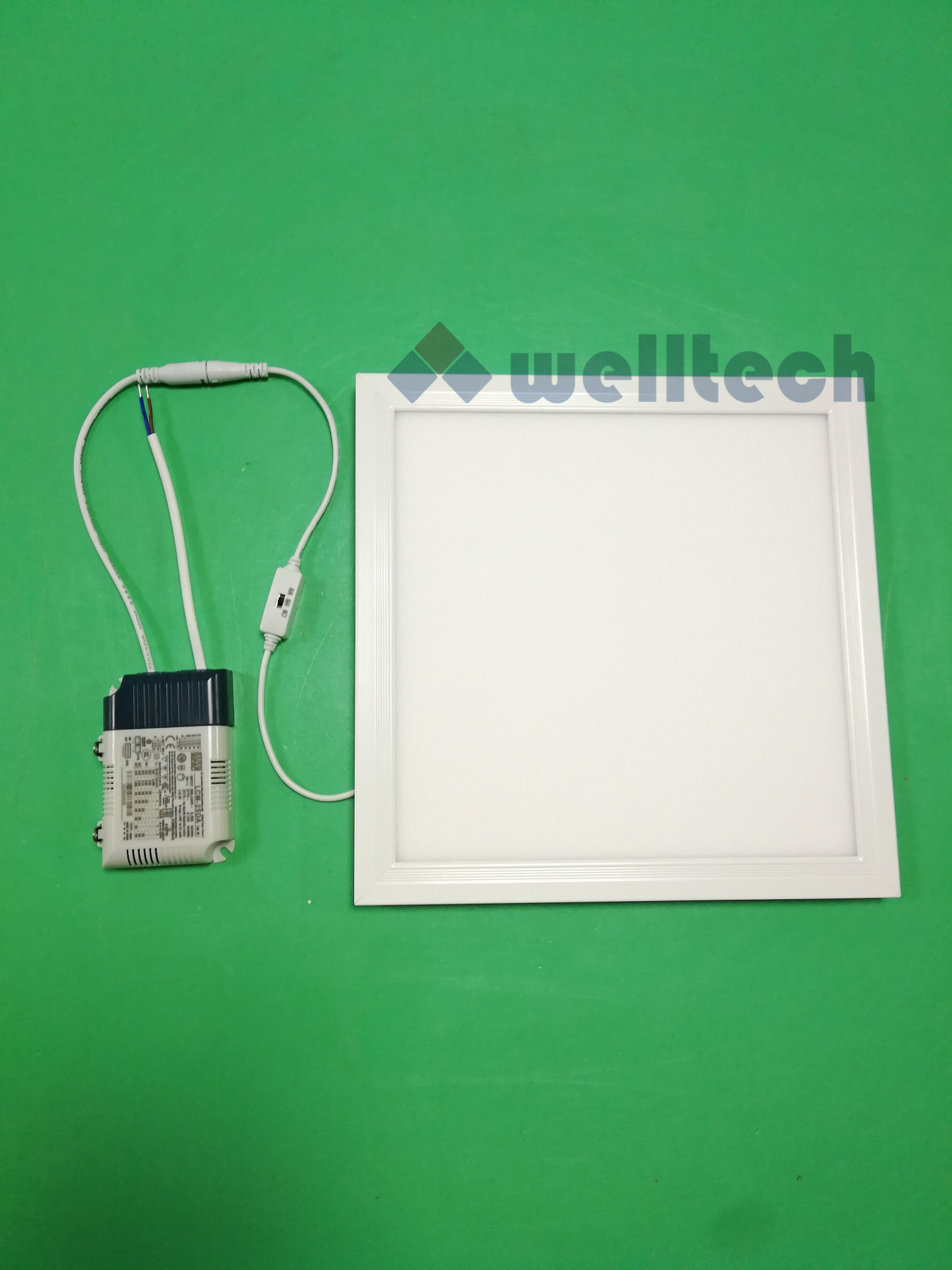

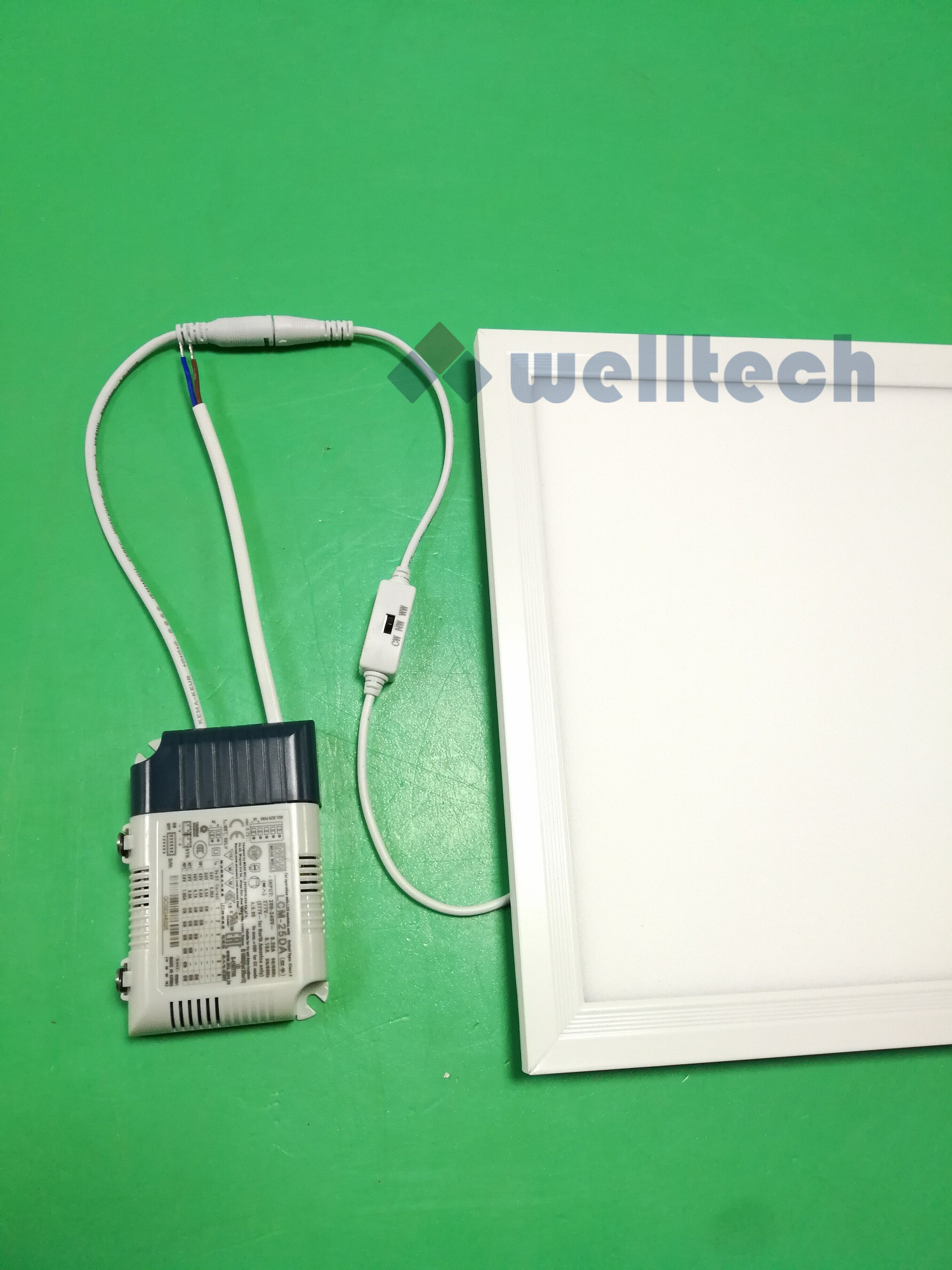

CCT switchable panel light

微信

复制链接

脸书

领英

Input AC200-240V/50-60Hz or AC85-265V /50-60Hz

Chip SMD2835

Lumen efficency 100lm/W, 120lm/W

CRI >80 ( can offer CRI>90 if wanted)

PF >0.95

Flicker No

Consulting Now

SpecificationAccessoryPacking

Features:

1) Super bright LED light source, high light efficiency >120lm/W, energy saving more than 80% and eco-friendly, smoothly light for our eyes;

2) Aluminum alloy frame with anti-static thermoplastic coating, corrosion resisting and antioxidant;

3) With ENEC, TUV, CE approved driver, PF> 0.95, flicker free;

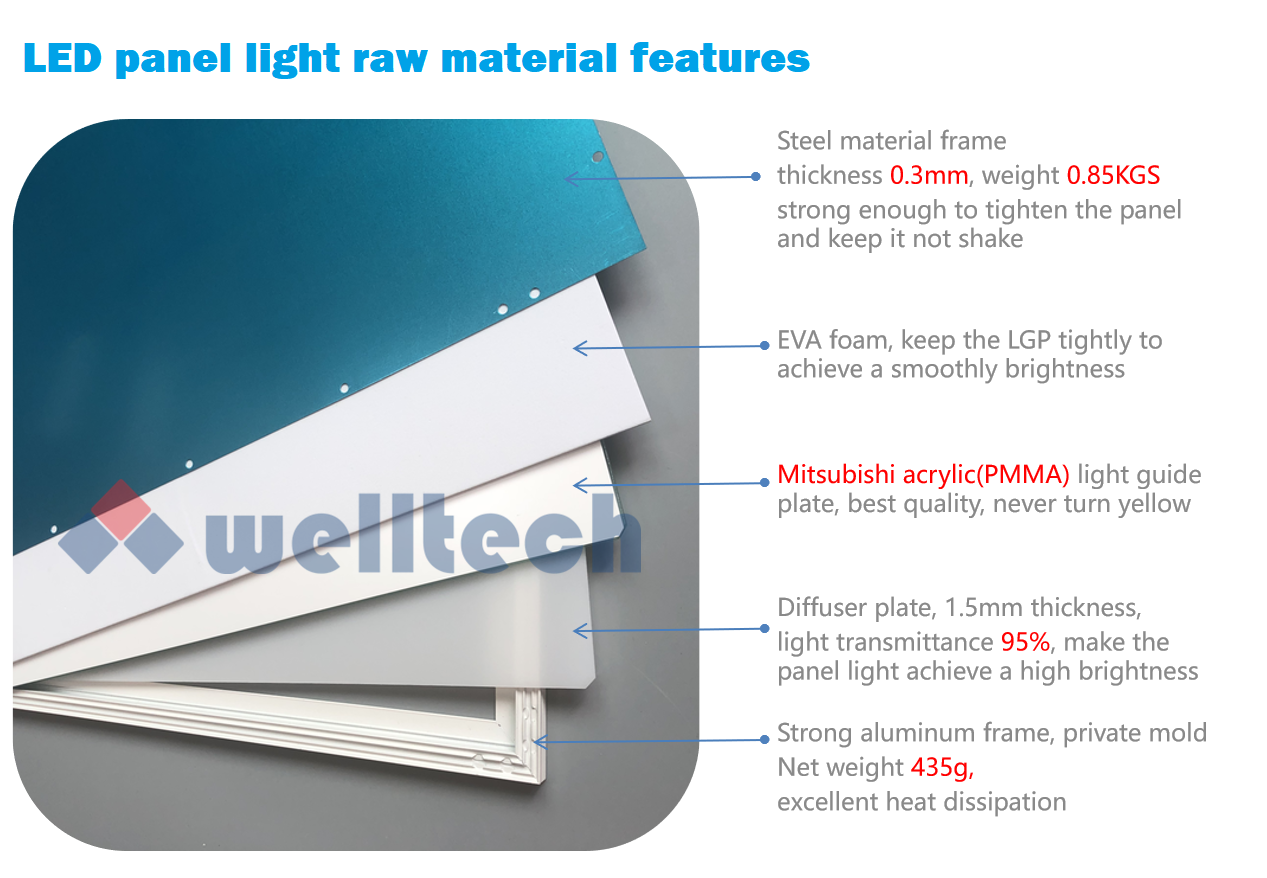

4) Mitsubishi acrylic(PMMA) light guide plate, never turn yellow;

5) Special circuit layout and good heat dissipation, lifespan more than 50000 hours;

6) Beautiful appearance, elegant, lightweight, untra-thin;

7) Easy installations: Recessed , Mounted, Suspension, Imbedded installation are available.

Main Specification:

Product	LED panel light
Input	AC200-240V/50-60Hz or AC85-265V /50-60Hz

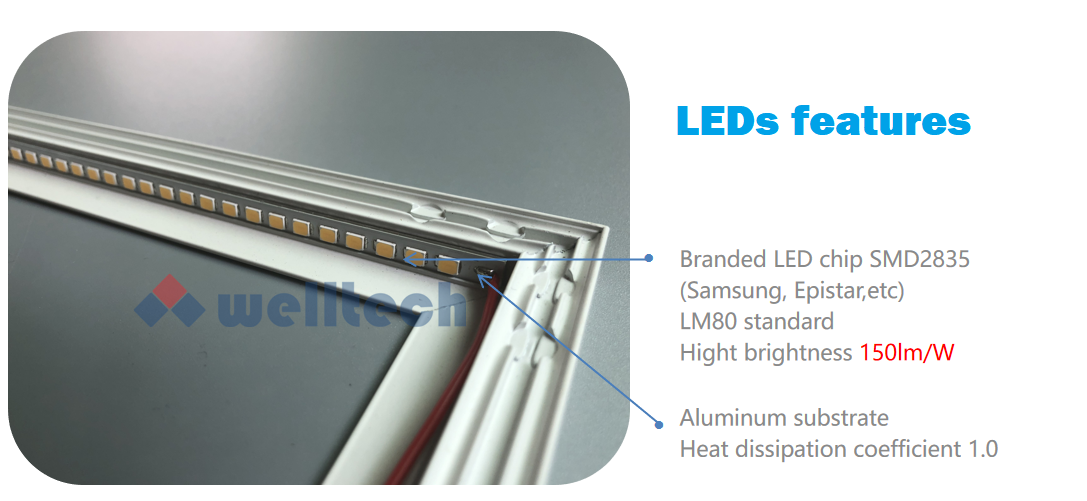

Chip	SMD2835, SMD4014 optional
Lumen efficency	100lm/W, 120lm/W
CRI	80 ( can offer CRI>90 if required)
PF	0.95
THD	<17
Beam angle	160°
Driver	Choose branded driver: Meanwell, Philips, LIFUD, AGT, BOKE, etc (ENEC, TUV,CE approved)
Dimmable	Triac,1-10V,DALI, DMX512 can choose
Working temp.	-40°C - 50°C
IP grade	IP40
Energy efficency class	A++
CCT	2700-6500K dimmable
Frame colour	White, Silver, Black, etc
Certificates	EMC (EN61547, EN55015, EN61000), LVD (EN60598), EN62471, RoHS
Lifespan	50000 hours
Warranty	3 years, 5 years can choose

Item Specification:

Installation

-Recessed installation (no need accessory)

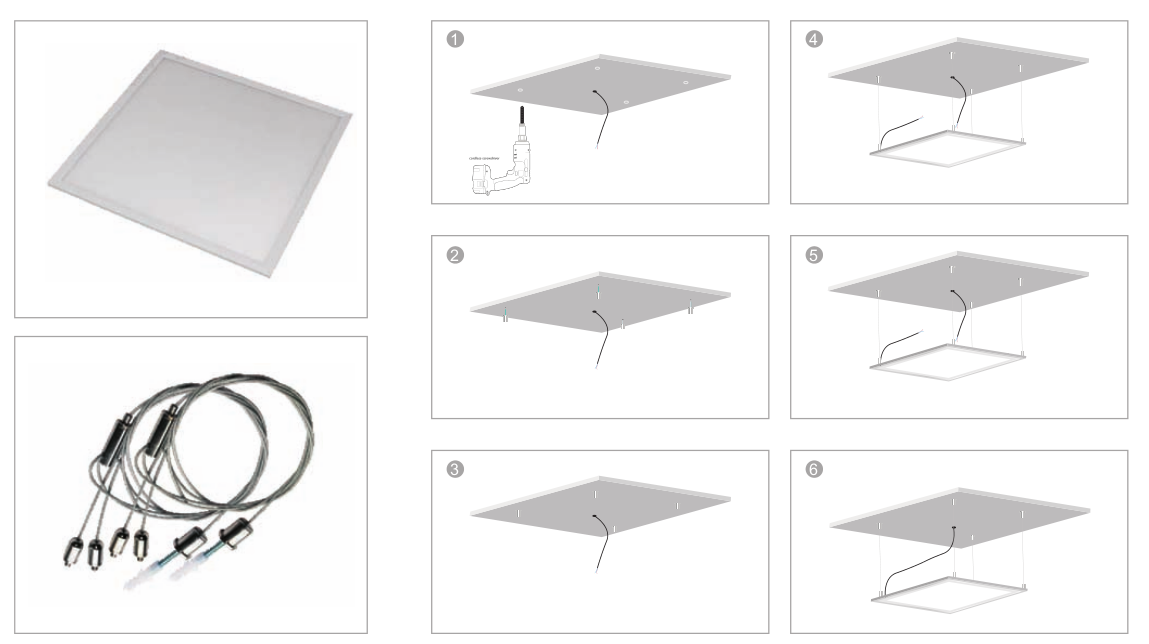

-Suspended installation (with hanging string)

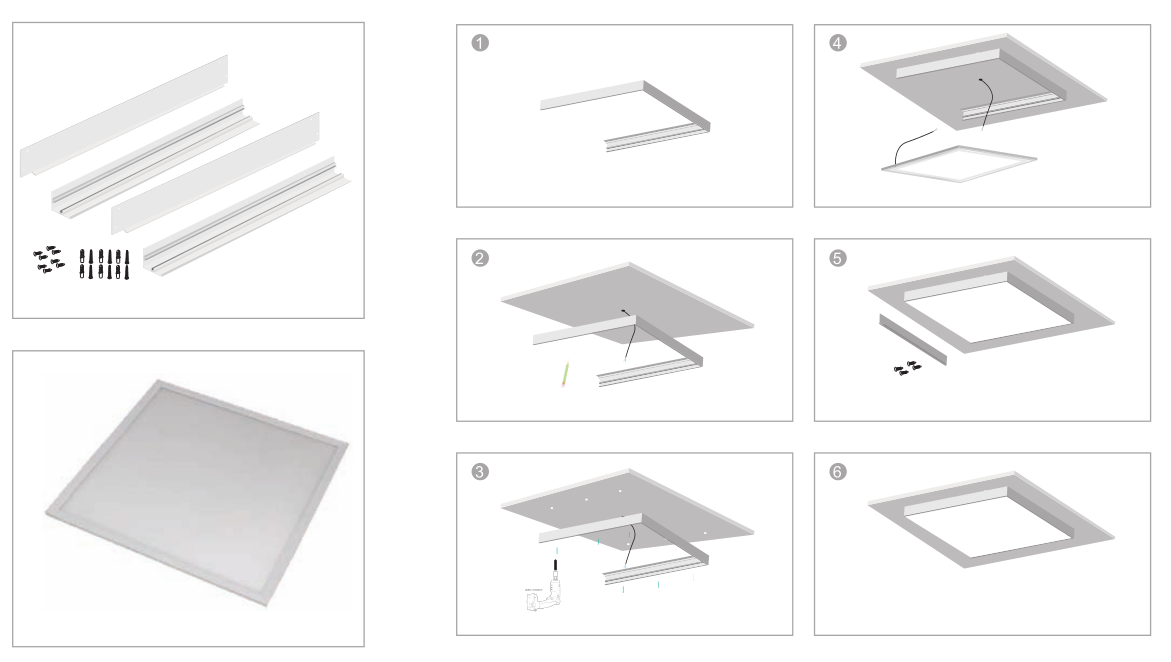

-Mounted installation (with mounted frame)

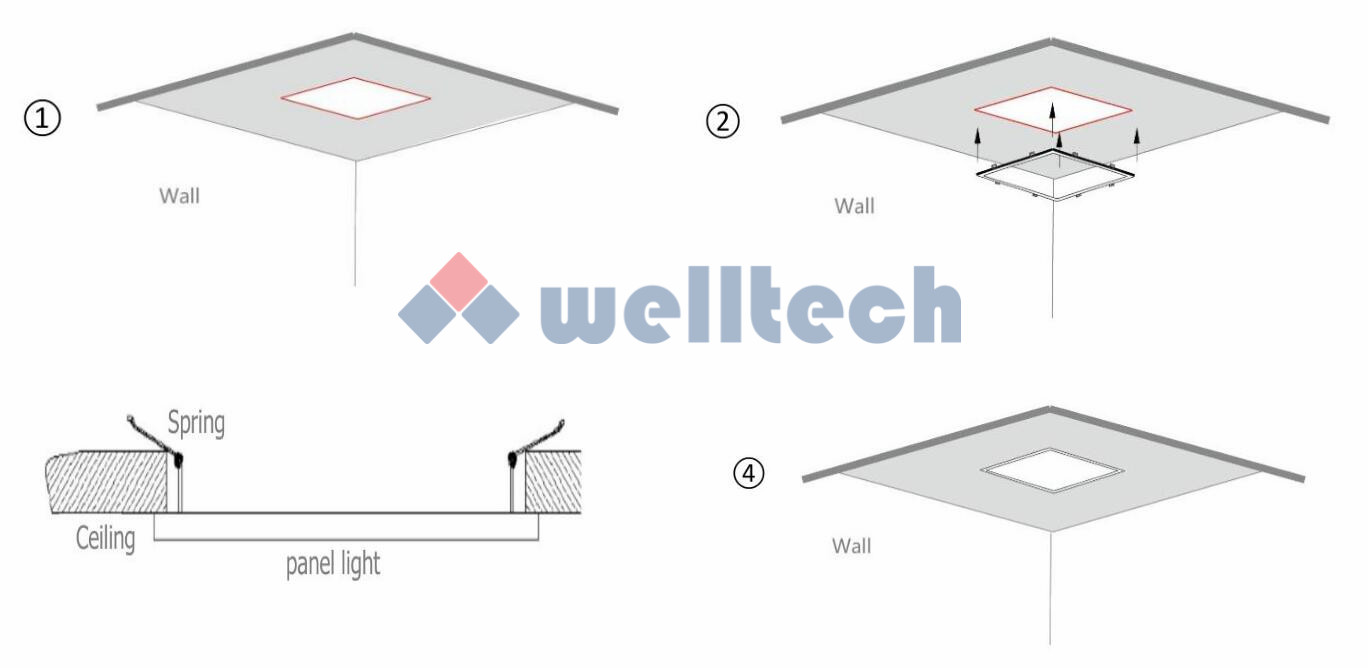

-Embedded installation (with spring clips)

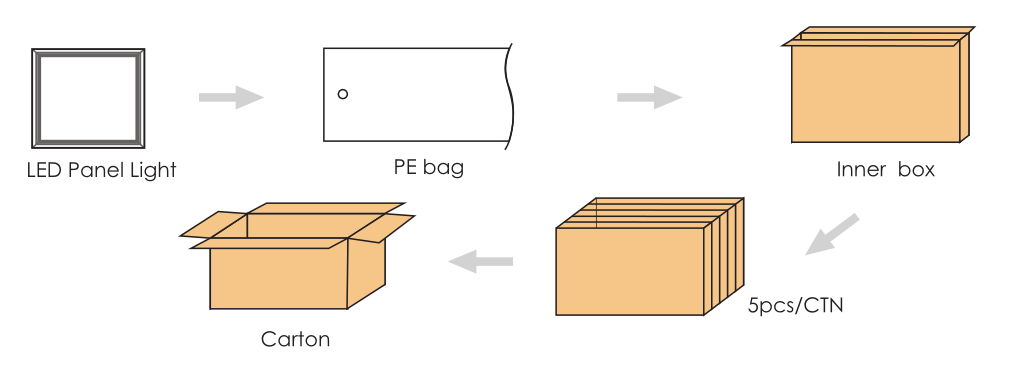

Packing data

LED panel	Qty/ctn (pcs)	Carton size(cm)	G.W per box (KGS)	20 GP container qty(pcs)	40 GP container qty(pcs)	40 HP container qty(pcs)
300x300mm	5	39x38x27	9	3375	7000	8500
600x600mm	5	68x68x27	19	1080	2240	2720
620x620mm	5	71x70x27	21	1000	2050	2537
1200x300mm	5	128x39x27	21	1000	2050	2537
1200x600mm	2	128x70x11	15	548	1150	1380
